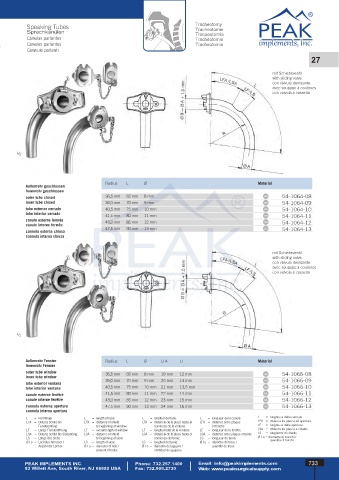

Speaking Tubes Tracheotomy
Tracheotomie
Sprechkanülen PEAK
Traqueotomía
Cánulas parlantes Trachéotomie
Canules parlantes Tracheotomia implements, Inc.
Cannule parlanti
27

mit Schiebeventil
with sliding valve
con válvula deslizante
avec soupape à coulisses
con valvola a cassetto

1
⁄2

Radius L Ø Material
Außenrohr geschlossen
Innenrohr geschlossen
outer tube closed 36,5 mm 65 mm 8 mm 54-1064-08
inner tube closed 39,0 mm 70 mm 9 mm 54-1064-09
tubo exterior cerrado 40,5 mm 75 mm 10 mm 54-1064-10
tubo interior cerrado
41,5 mm 80 mm 11 mm 54-1064-11
canule externe fermée
43,0 mm 85 mm 12 mm 54-1064-12
canule interne fermée
47,5 mm 90 mm 13 mm 54-1064-13
cannula esterna chiusa
cannula interna chiusa
mit Schiebeventil
with sliding valve
con válvula deslizante
avec soupape à coulisses
con valvola a cassetto

1
⁄2

Außenrohr Fenster Radius L Ø LFA LF Material
Innenrohr Fenster
outer tube window 36,5 mm 65 mm 8 mm 19 mm 12 mm 54-1066-08
inner tube window
39,0 mm 70 mm 9 mm 20 mm 13 mm 54-1066-09
tubo exterior ventana
tubo interior ventana 40,5 mm 75 mm 10 mm 21 mm 13,5 mm 54-1066-10
canule externe fenêtre 41,5 mm 80 mm 11 mm 22 mm 14 mm 54-1066-11
canule interne fenêtre 43,0 mm 85 mm 12 mm 23 mm 15 mm 54-1066-12
cannula esterna apertura 47,5 mm 90 mm 13 mm 24 mm 16 mm 54-1066-13
cannula interna apertura
L = Rohrlänge L = length of tube L = longitud del tubo L = longueur de la canule L = lunghezza della cannula
LFA = Distanz Schild bis LFA = distance of shield LFA = distancia de la placa hasta el LFA = distance entre plaque LFA = distanza tra placca ed apertura
Fensteranfang to beginning of window comienzo de la ventana et fenêtre LF = lunghezza della apertura
LF = Länge Fensteröffnung LF = overall length of window LF = longitud total de la ventana LF = longueur de la fenêtre LSA = distanza tra placca e crivello
LSA = Distanz Schild bis Siebanfang LSA = distance of shield LSA = distancia de la placa hasta el LSA = distance entre plaque et tamis LS = lunghezza di crivello
LS = Länge des Siebs to beginning of sieve comienzo del tamiz LS = longueur du tamis Ø / o = diametro di bucchi /
quantità di bucchi
Ø / o = Lochdurchmesser / LS = length of sieve LS = longitud del tamiz Ø / o = diamètre de trous /
Anzahl der Löcher Ø / o = diameter of hole / Ø / o = diámetro del agujero / quantité de trous 733
amount of holes cantidad de agujeros
