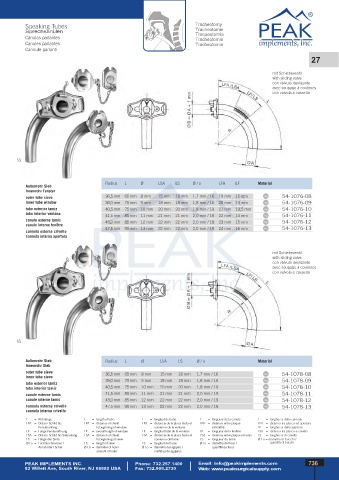

Speaking Tubes Tracheotomy
Sprechkanülen Tracheotomie PEAK
Traqueotomía
Cánulas parlantes Trachéotomie
Canules parlantes Tracheotomia implements, Inc.
Cannule parlanti
27

mit Schiebeventil
with sliding valve
con válvula deslizante
avec soupape à coulisses
con valvola a cassetto

1
⁄2

Radius L Ø LSA LS Ø / o LFA LF Material
Außenrohr Sieb
Innenrohr Fenster
outer tube sieve 36,5 mm 65 mm 8 mm 15 mm 18 mm 1,7 mm / 16 19 mm 12 mm 54-1076-08
inner tube window 39,0 mm 70 mm 9 mm 18 mm 18 mm 1,8 mm / 16 20 mm 13 mm 54-1076-09
tubo exterior tamiz 40,5 mm 75 mm 10 mm 20 mm 20 mm 1,8 mm / 19 21 mm 13,5 mm 54-1076-10
tubo interior ventana
41,5 mm 80 mm 11 mm 21 mm 21 mm 2,0 mm / 19 22 mm 14 mm 54-1076-11
canule externe tamis
43,0 mm 85 mm 12 mm 22 mm 22 mm 2,0 mm / 19 23 mm 15 mm 54-1076-12
canule interne fenêtre
47,5 mm 90 mm 13 mm 22 mm 22 mm 2,0 mm / 19 24 mm 16 mm 54-1076-13
cannula esterna crivello
cannula interna apertura
mit Schiebeventil
with sliding valve
con válvula deslizante
avec soupape à coulisses
con valvola a cassetto

1 ⁄2

Außenrohr Sieb Radius L Ø LSA LS Ø / o Material
Innenrohr Sieb
outer tube sieve 36,5 mm 65 mm 8 mm 15 mm 18 mm 1,7 mm / 16 54-1078-08
inner tube sieve
39,0 mm 70 mm 9 mm 18 mm 18 mm 1,8 mm / 16 54-1078-09
tubo exterior tamiz
tubo interior tamiz 40,5 mm 75 mm 10 mm 20 mm 20 mm 1,8 mm / 19 54-1078-10
canule externe tamis 41,5 mm 80 mm 11 mm 21 mm 21 mm 2,0 mm / 19 54-1078-11
canule interne tamis 43,0 mm 85 mm 12 mm 22 mm 22 mm 2,0 mm / 19 54-1078-12
cannula esterna crivello 47,5 mm 90 mm 13 mm 22 mm 22 mm 2,0 mm / 19 54-1078-13
cannula interna crivello
L = Rohrlänge L = length of tube L = longitud del tubo L = longueur de la canule L = lunghezza della cannula
LFA = Distanz Schild bis LFA = distance of shield LFA = distancia de la placa hasta el LFA = distance entre plaque LFA = distanza tra placca ed apertura
Fensteranfang to beginning of window comienzo de la ventana et fenêtre LF = lunghezza della apertura
LF = Länge Fensteröffnung LF = overall length of window LF = longitud total de la ventana LF = longueur de la fenêtre LSA = distanza tra placca e crivello
LSA = Distanz Schild bis Siebanfang LSA = distance of shield LSA = distancia de la placa hasta el LSA = distance entre plaque et tamis LS = lunghezza di crivello
LS = Länge des Siebs to beginning of sieve comienzo del tamiz LS = longueur du tamis Ø / o = diametro di bucchi /
Ø / o = Lochdurchmesser / LS = length of sieve LS = longitud del tamiz Ø / o = diamètre de trous / quantità di bucchi 736
Anzahl der Löcher Ø / o = diameter of hole / Ø / o = diámetro del agujero / quantité de trous
amount of holes cantidad de agujeros
