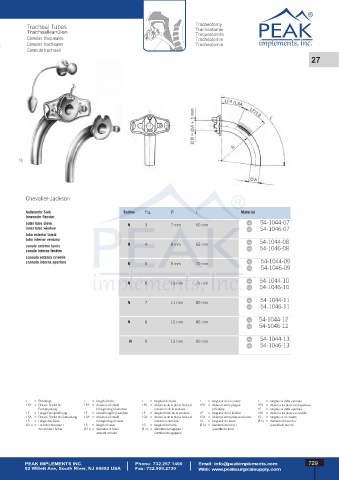

Page 735 - peaksurgicalsupply

®
Tracheal Tubes Tracheotomy
Tracheotomie
Trachealkanülen PEAK
Traqueotomía
Cánulas traqueales Trachéotomie
Canules tracheales Tracheotomia implements, Inc.
Cannule tracheali
27

1
⁄2

Chevalier-Jackson

Außenrohr Sieb Radius Fig. Ø L Material
Innenrohr Fenster
outer tube sieve N 3 7 mm 60 mm 54-1044-07
inner tube window 54-1046-07
tubo exterior tamiz
tubo interior ventana
N 4 8 mm 65 mm 54-1044-08
canule externe tamis
canule interne fenêtre 54-1046-08
cannula esterna crivello
cannula interna apertura 54-1044-09
N 5 9 mm 70 mm
54-1046-09
54-1044-10
N 6 10 mm 75 mm
54-1046-10
54-1044-11
N 7 11 mm 80 mm
54-1046-11

54-1044-12
N 8 12 mm 85 mm
54-1046-12
54-1044-13
N 9 13 mm 90 mm
54-1046-13

L = Rohrlänge L = length of tube L = longitud del tubo L = longueur de la canule L = lunghezza della cannula
LFA = Distanz Schild bis LFA = distance of shield LFA = distancia de la placa hasta el LFA = distance entre plaque LFA = distanza tra placca ed apertura
Fensteranfang to beginning of window comienzo de la ventana et fenêtre LF = lunghezza della apertura
LF = Länge Fensteröffnung LF = overall length of window LF = longitud total de la ventana LF = longueur de la fenêtre LSA = distanza tra placca e crivello
LSA = Distanz Schild bis Siebanfang LSA = distance of shield LSA = distancia de la placa hasta el LSA = distance entre plaque et tamis LS = lunghezza di crivello
LS = Länge des Siebs to beginning of sieve comienzo del tamiz LS = longueur du tamis Ø / o = diametro di bucchi /
Ø / o = Lochdurchmesser / LS = length of sieve LS = longitud del tamiz Ø / o = diamètre de trous / quantità di bucchi
Anzahl der Löcher Ø / o = diameter of hole / Ø / o = diámetro del agujero / quantité de trous
amount of holes cantidad de agujeros
